Alltion AC-5000 series colposcopes

The Alltion AC-5000 series colposcopes offer exceptional performance, being specially created to ensure high-precision gynecological diagnosis. This model is distinguished by an advanced optical system, an ergonomic design and a powerful LED light, elements that facilitate detailed observations and a comfortable user experience.

The AC-5000 colposcope combines premium quality optics with apochromatic technology to eliminate chromatic aberrations and reproduce natural colors with remarkable accuracy (5700K color temperature and ≥85% color rendering index). It is equipped with a long-lasting LED illumination system (over 50,000 hours), providing a bright and clear light of over 50,000 lux, even at the highest magnification levels. The AC-5000 includes innovative filter adjustment functions and multiple lighting modes (non-reflective modes, blue, green and yellow filters), adaptable to the diverse needs of professionals.

Colposcopes series AC-5000 Alltion main features:
High Quality Optics: Apochromatic system ensures clear images without chromatic aberration at various levels of manual magnification (2.6X, 3.9X, 6.4X, 10.3X, 16.1X).
Powerful and Durable Lighting: Long life LED (over 50,000 hours) and maximum light of 50,000 lux at 250mm working distance.

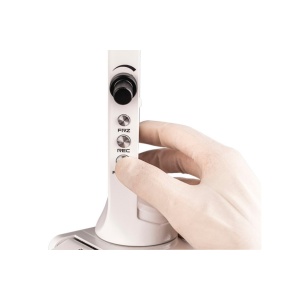

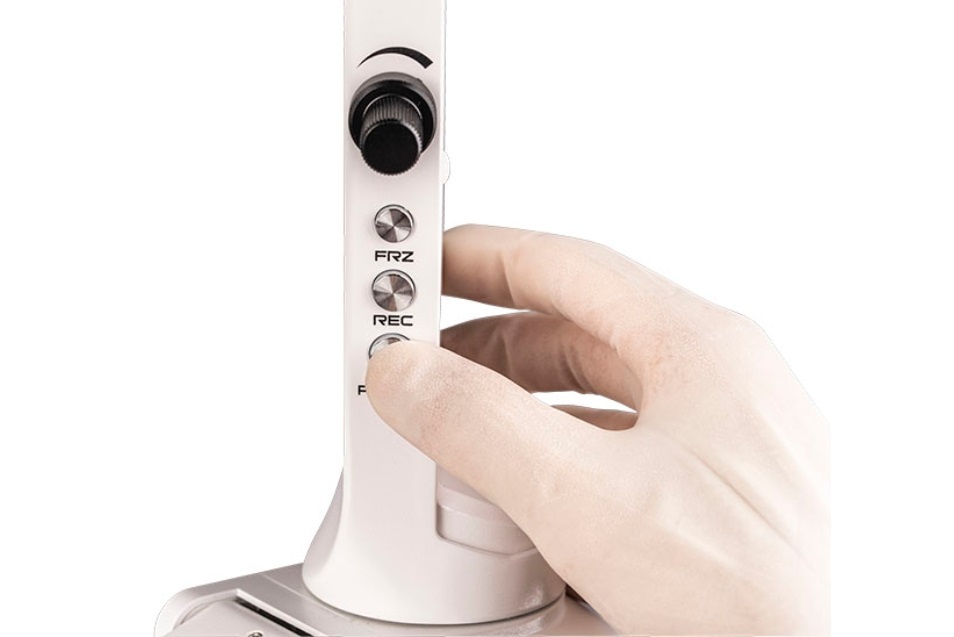

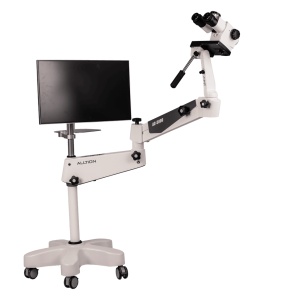

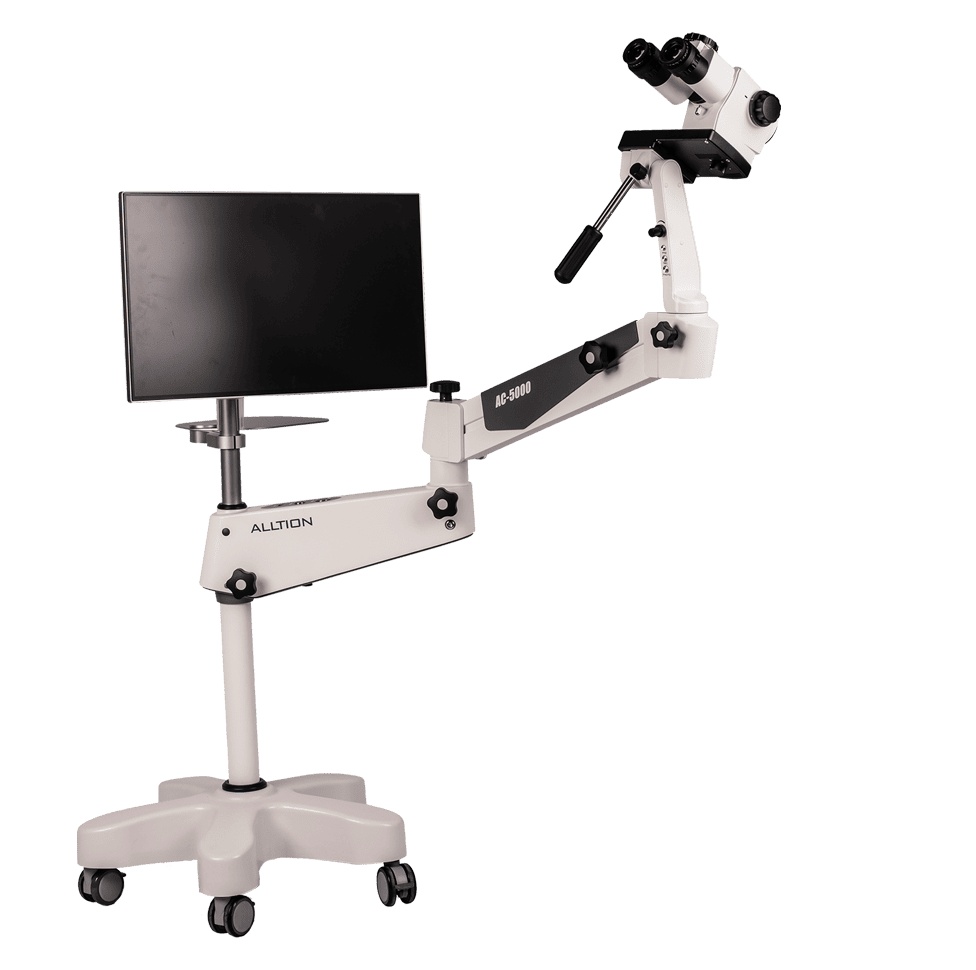

Ergonomic Design: Equipped with an oscillating arm and a multi-functional handle, the colposcope ensures comfort in use while providing enough space for maneuvering.

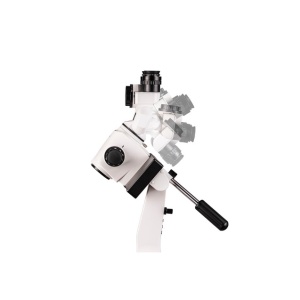

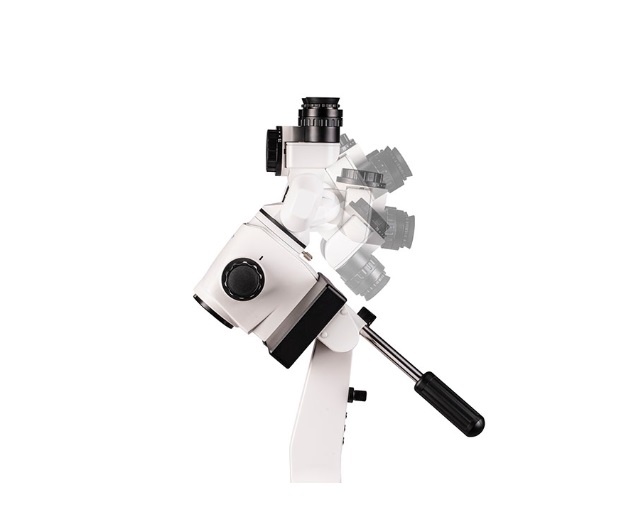

Adjustable Binocular Head: Various binocular head options, including straight, 45° angled, and 0-180° tiltable heads to allow custom adjustments.
HDMI Connectivity and WiFi Transmission: Enables real-time image transmission and connection to external devices, including dual HDMI outputs and WiFi options for maximum flexibility.
Technical specifications Colposcope series AC-5000 Alltion:
Binocular head: Straight head with interpupillary distance adjustment (50-75 mm); optional, binocular head inclined at 45° or tiltable 0-180°.
Eyepiece: Eyepiece with 12.5X/18B field of view and ±7D diopter adjustment; 10X/21B options available.

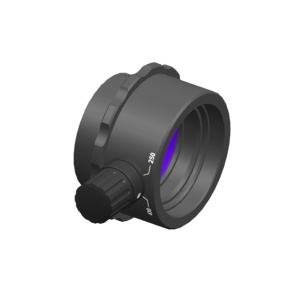

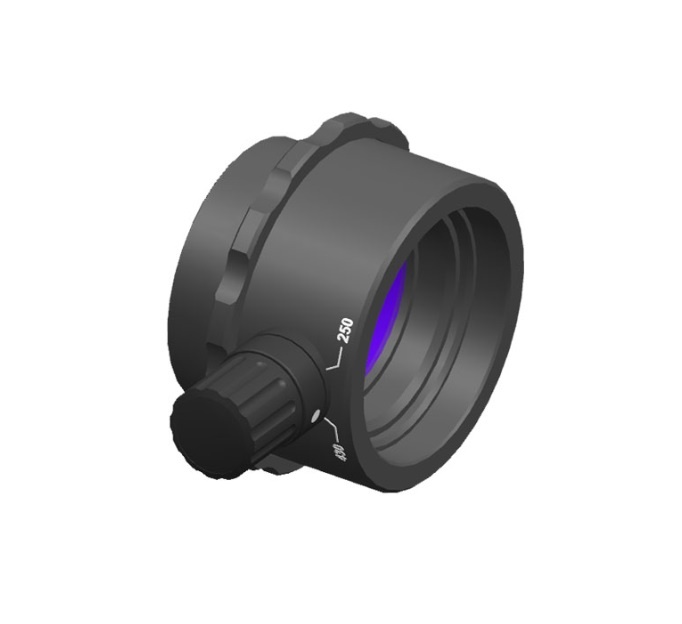

Objective Lenses: Objective lens with adjustable working distance between 250-430mm.
Light Filters: Light modes with blue, green, yellow filters and no reflection mode.
Integrated Camera Sensor: 1/2" SONY CMOS sensor with HD1080P resolution, 60FPS, with advanced image adjustment functions (auto exposure, auto white balance, and HDR function).
Camera Features: Video recording, photography, playback, zoom and image comparison. Supports external USB disk storage up to 64GB.
Power System: Input AC100-240V, 50/60Hz; output DC12V/3A, power consumption between 25-60VA.
Platform Compatibility: Apps for Windows, Android and iOS systems.
Alltion's AC-5000 series is the ideal choice for gynecology professionals looking for a reliable and high-performance equipment capable of providing a clear and complete diagnosis.
