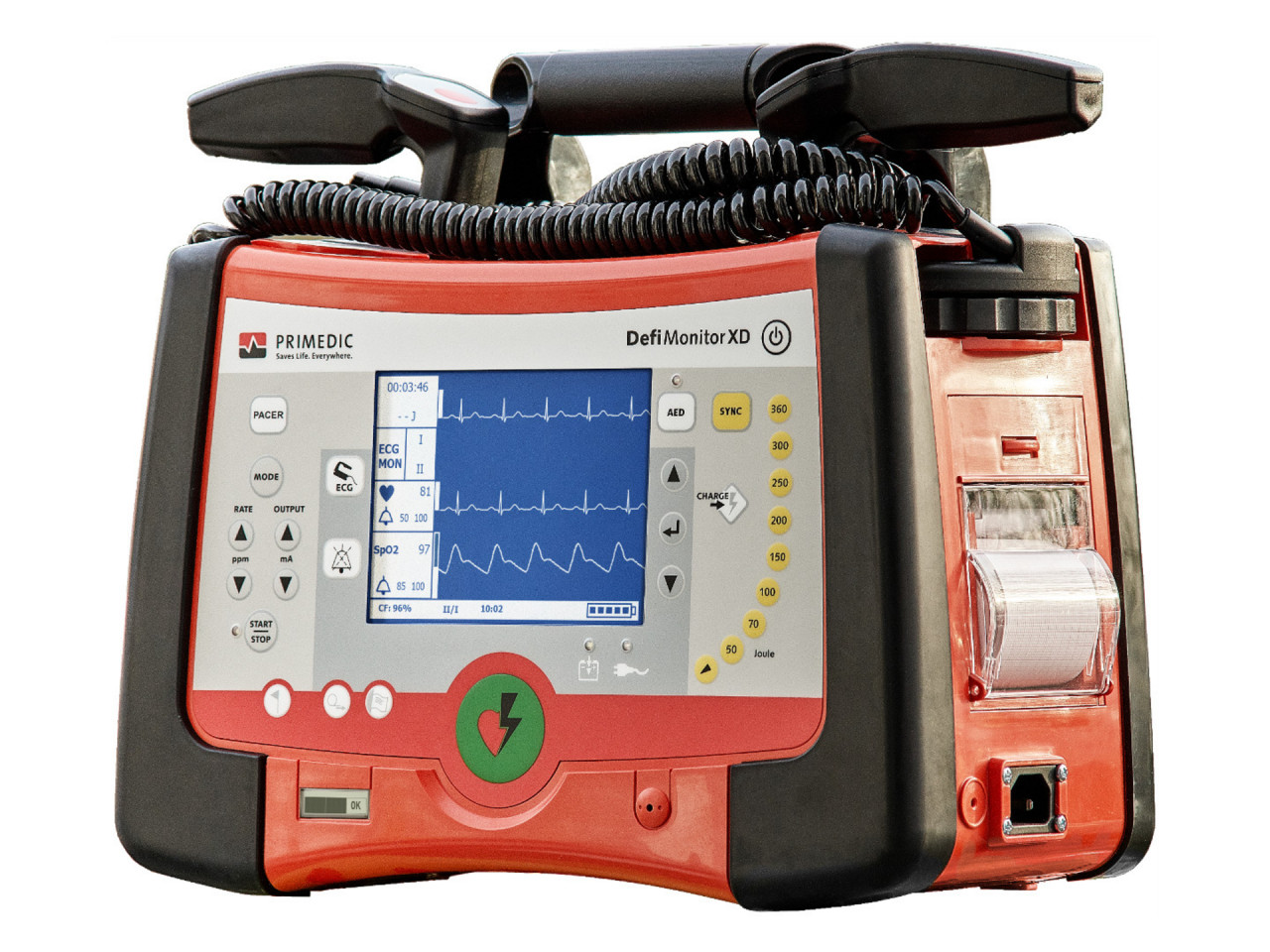

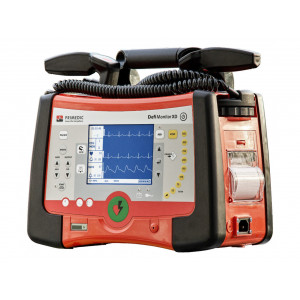

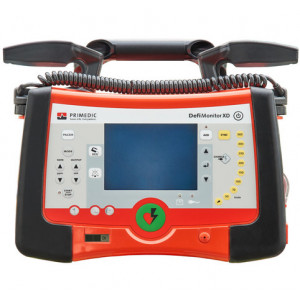

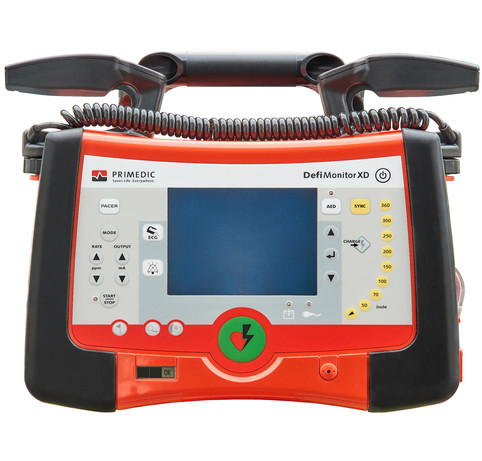

Defibrillators Primedic DefiMonitor XD

Description

Defibrillators Primedic DefiMonitor XD

Characteristics:

Robust, light and complete - the housing is an extremely durable and shock-resistant defibrillator (the inside of the defibrillator is covered with a special shock-absorbing foam). Its weight is low and it includes additional accessories and extensive software.

Easy to use in difficult conditions - The high-contrast blue TFT display allows reading in the most difficult conditions. With integrated paddles for adults and children, no special adapters or attachments are required. In a few seconds, by unscrewing the case, we get small, pediatric pads.

Safe for the heart - The CCD (controlled current defibrillation) technology used causes elements of the current that could damage the heart muscle to be removed. This results in highly effective and gentle defibrillation.

Defibrillation:
• Pulse type: biphasic energy (MANUAL mode): 5-360J, 9 levels.
• Charging time: up to 6 seconds for 200 J
• Cardioversion: manual activation
• QRS marker

ECG:
• Method: Eindhoven I, II, III, Goldberger AVL, AVR, aVF
• Patient resistance: 23-200 Ohm
Heart rate: 30-300 beats/min
Alarms: 30-300 / min

Screen:
• Model: TFT, blue mode LCD
• Dimensions: 115x86mm (5.7 ")
• Resolution: 320x240 pixels

Electrodes:
• Adhesive electrodes
• Lifetime: 36 months
• Cable length: 3.5 m
• Active electrode surface 164 cm2
• Built-in pediatric pads

Printer:
• Type: thermal
• Resolution: 200 dpi
• Paper width 58mm
• 50mm printing width
• Speed: 25mm / s / 50mm / s
• Operating modes: AUTO, ONLINE, print MEMO

Data Storage:
• Portable memory: CF card (2 GB)
• Voice and data recording time: up to 75 hours
• Ability to record voice and stop
• PC software

Power supply:
• Battery: LiFePO4 12V, 2.5Ah, lifetime: min. 4 years (discharge up to 160 @ 200J), monitoring: 5-6 hours
• Charging time: about 3 hours
• Input 90V ... 264V / 50Hz / 60Hz
