Name: EDAN Nano C5 EXP Ultraportable Ultrasound Scanner and FREE Galaxy A9+ Tablet
Brand: EDAN

Description

EDAN Nano C5 EXP ultraportable Ultrasound Scanner

PROMOTIONAL OFFER valid from 15.09 -15.10.2025:

FREE SAMSUNG GALAXY TAB 9A+ TABLET with the purchase of an Ecograf Nano C5 EXP EDAN.

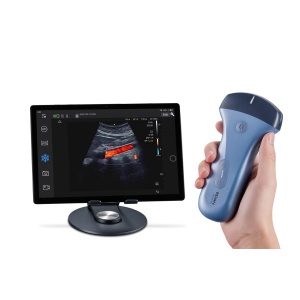

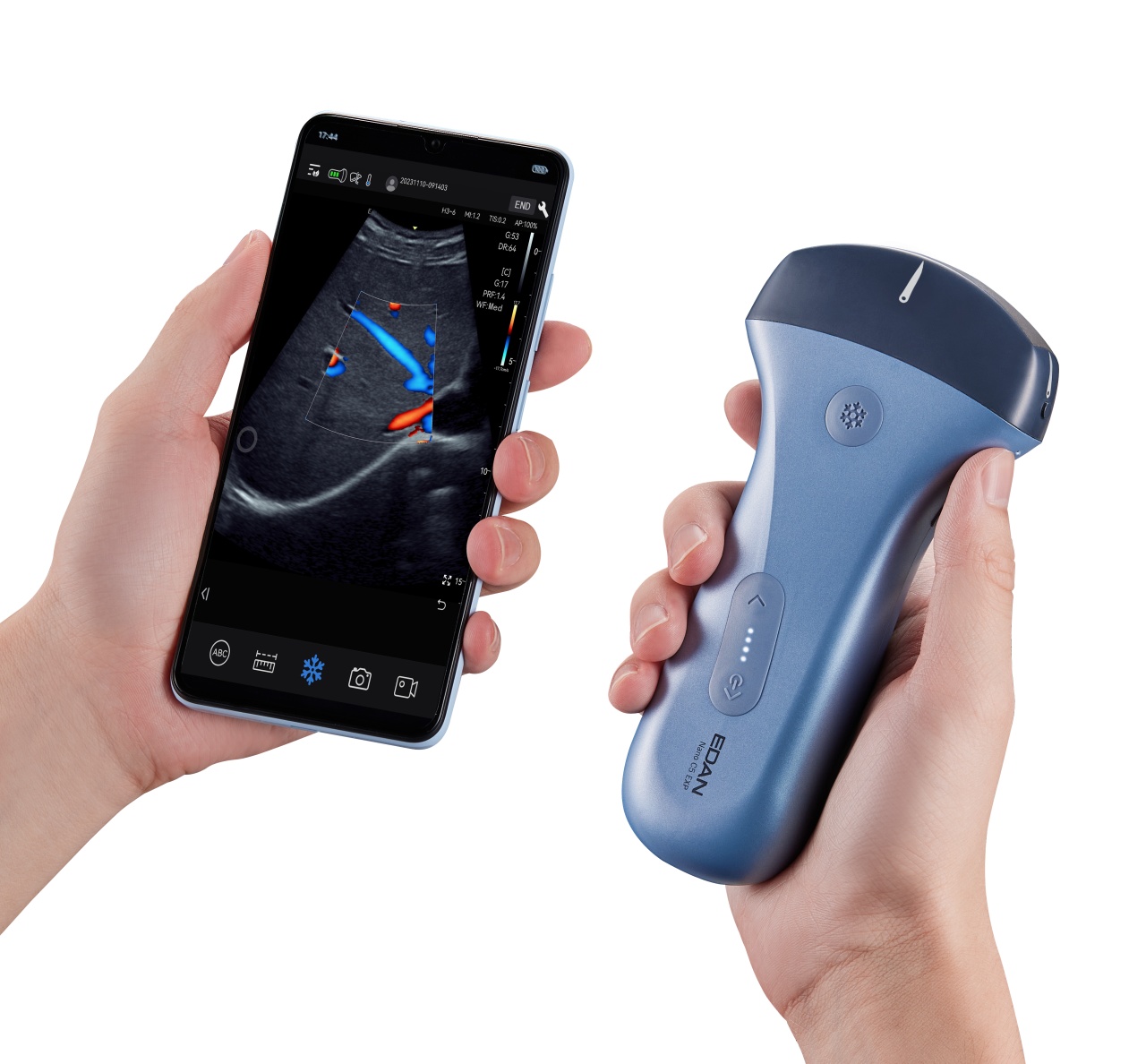

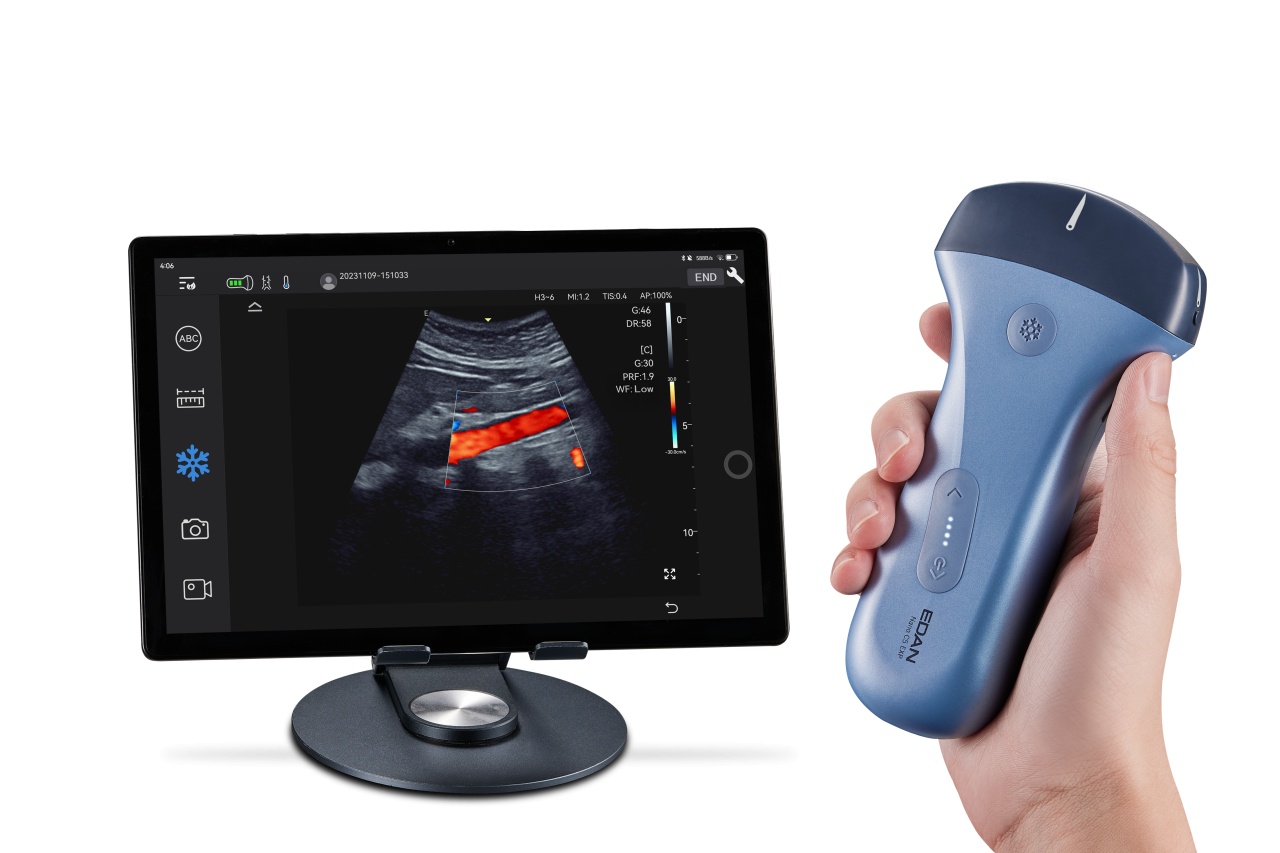

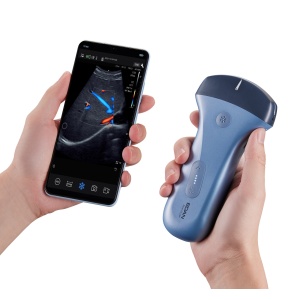

The Nano C5 EXP EDAN ultrasound scanner is a portable, convex ultrasound scanner, launched on the market in 2024, designed for fast and accurate diagnostics in any medical context. This compact and ergonomic device allows for high-quality images, connecting to Android tablets and smartphones.

Thanks to Wi-Fi or cable connection and dust and water resistance features (IP67), the Nano C5 EXP is ideal for diverse environments, from clinics and hospitals to emergency situations in the field. With advanced features, including Auto B-Line and eVocal, this portable ultrasound scanner optimizes scan time and facilitates quick access to critical information for patients.

Convex Probe vs Linear Probe:

Convex - low frequency, deeper penetration, wide field of view (ideal for abdomen and internal organs);
Linear - high frequency, less penetration, high resolution (ideal for surface structures and fine details).

Portable ultrasound scanner Nano C5 EXP EDAN main features:

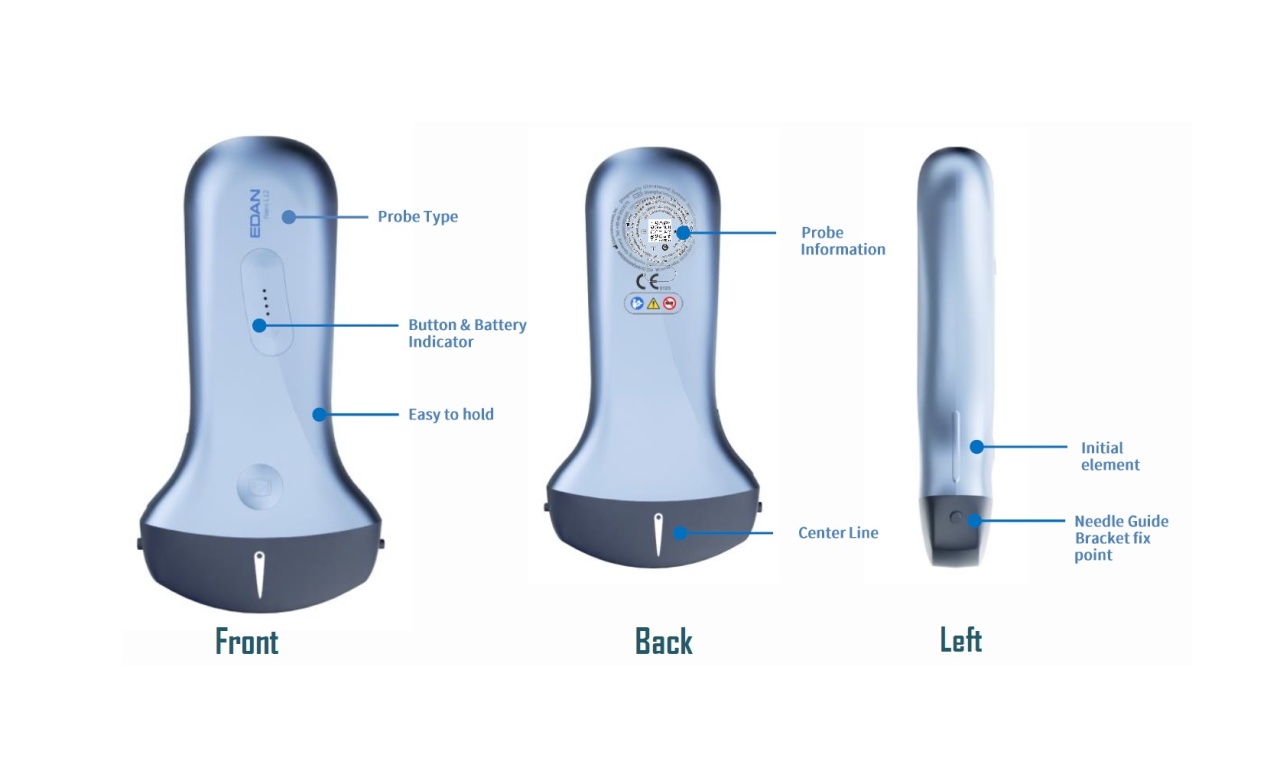

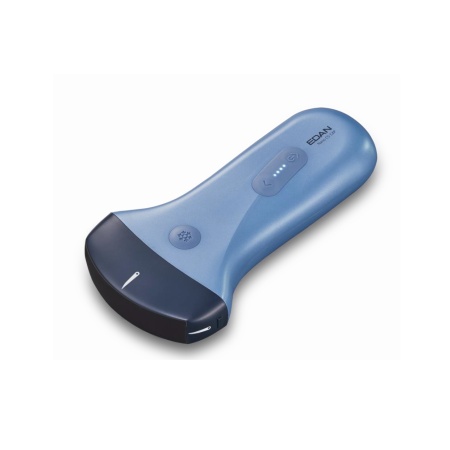

Portable and ergonomic design: With small dimensions and weight of only 240 g, Nano C5 EXP is easily carried in any context.
Extended autonomy and fast charging: The Li-ion battery provides up to 5 hours of use (50% scan/50% pause) and charges in just 2.5 hours.
IP67 resistance: The device is water and dust resistant, making it easy to use in harsh environments.
Multiple imaging modes: Includes B-mode, C-mode, M-mode and pulse Doppler, ensuring accurate visualizations for various clinical applications.
Versatile connection: Android compatibility and Type-C cable or wireless connectivity options.
Auto-Optimization Features: Includes features like Auto Trace, Auto B-Line and one-touch optimization for B/C/PW modes.

Technical specifications of the portable ultrasound scanner Nano C5 EXP EDAN:

Dimensions: 158mm x 81mm x 29mm
Weight: 240 ± 5 g
Physical channels: 64
Number of items: 128
Convex radius: 60 mm
Frequency: 2–5 MHz, center frequency 3.5 MHz
Maximum scanning depth: 30 cm
Autonomy: Up to 5 hours of operation
Charging time: About 2.5 hours from 8% to 90%
Protection: IP67 (dust and water resistant)
Compatibility: Android 10.0 and up

Portable ultrasound scanner Nano C5 EXP EDAN advantages

Superior Image Quality: The SynSight platform delivers sharp images with noise reduction and detail optimization.
Flexibility and accessibility: Perfect for clinics, EDs and field interventions, with full functionality on mobile devices.
Connection to PACS and DICOM systems: Enables easy data sharing and storage of images and clips in DICOM, JPEG and MP4 formats.
Configurable functions: Users can set the buttons for various functions, such as eVocal (voice assistant), gain control and depth adjustment.
Integration with patient management applications: Local storage and quick access to historical patient data.

Features Portable ultrasound scanner Nano C5 EXP EDAN

Auto B-Line and Fast/eFast: Rapid navigation protocol for lung assessment and emergency diagnosis.
Dual Imaging and Auto Optimization: Ability to view two images simultaneously and automatically optimize settings for optimal clarity.
eVocal Voice Assistant: Enables voice control to optimize workflow without manual intervention.
Post-processing functions: Further image adjustments and possibility to re-edit basic data.
Advanced data management: Sharing via Bluetooth, Airdrop, and other third-party applications, local storage and DICOM transfer.

Portable ultrasound scanner Nano C5 EXP EDAN applications

Nano C5 EXP is ideal for:

Abdominal diagnosis, obstetrics and gynecology: Allows detailed assessment of internal organs and structures.
Cardiology and Vascular: Useful for assessing blood flow and cardiovascular functions.
Lung Assessment: Includes Auto B-Line function for rapid diagnosis in pulmonology.
Orthopedics and MSK: Ideal for pain management and assessment of musculoskeletal injuries.
Anesthesia and pain management: Assistance in needle-guided procedures and biopsies through the deep visualization provided by the convex probe.
