EKG holter SA-2003 EDAN

Description

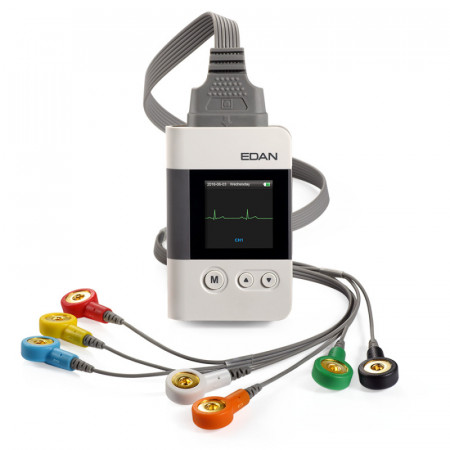

EKG holter SA-2003 EDAN - compact, lightweight and waterproof

The SE-2003 EDAN ECG/EKG Holter achieves protection rating up to IP27 to prevent unexpected damage caused by water or dust, which maximises patients' freedom in their daily life and facilitates the cleaning and sterilisation procedure in the hospital.

Characteristics:

• Digital recording: 3 channels;

• Pacemaker detection;

• Memory card, removable;

• Analog to digital conversion: 8 Bit;

• Power supply: AAA alkaline battery, 1.5 V;

• Operating time: 24-96 hours;

• Memory card: SD Card 2 GB;

• ECG Holter software;

• Full recording 24-96 hours;

• Automatic and manual editing of patient data;

• QRS classification template;

• Arrhythmia analysis;

• Pacemaker analysis;

• Obstructive sleep apnea syndrome analysis;

• Atrial fibrillation analysis;

• Data download via card or USB cable;

• Dynamic search and learning system
  - Match QRS by type
  This function automatically classifies the QRS complex whose morphological characteristics are similar to the one you have chosen;
  - Batch-delete Artifact
  By selecting a specific segment as the artifact to delete, this function helps you to delete all artifacts similar to the chosen one;

• Waveform Overlap Heatmap - exposes abnormal beats on overlapping waveforms;
• Histogram - helps to quickly locate uncommon segments and also
  provides a brief understanding of the patient's health status;

• Lorenz Plots - Lorenz plots show R-R ranges to quickly indicate inhomogeneous beat-to-beat variability;

• Automatic ST segment assessment and ST reanalysis - ST deviation can be automatically detected and shown in the ST assessment graph, along with ST colour mapping. Without interrupting any previous procedure, you can separately modify the J-point, ST-point and T-wave offset by re-analysing the ST segment;

• Automatic detection of AFIB segments - Atrial fibrillation segments can be automatically detected and presented in the AFIB list, where you can quickly locate and verify the distinct period of waveforms.
