Incubator Neonatology Ningbo TI-2100B David Medical Device

Description

Incubator Neonatology Ningbo TI-2100B David Medical Device

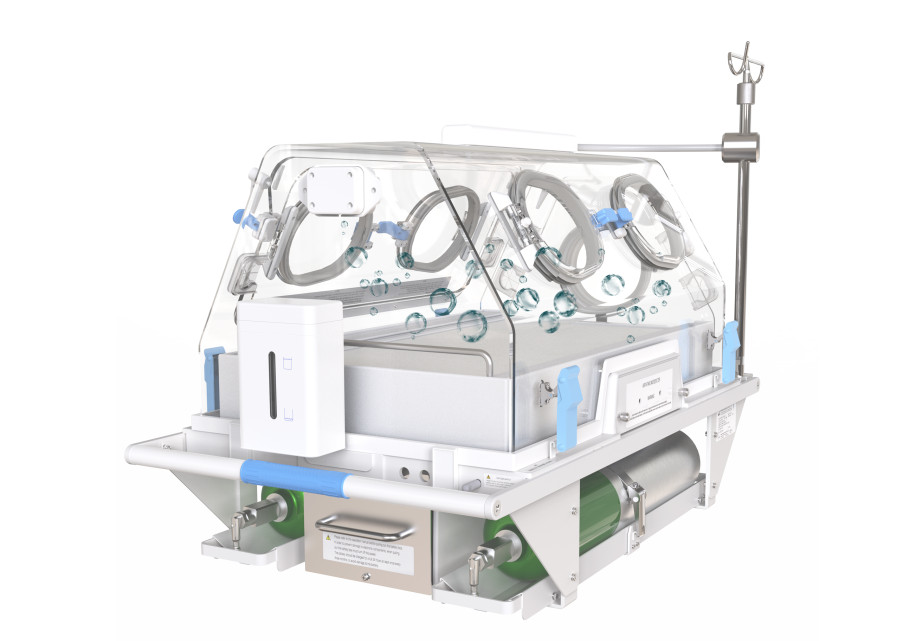

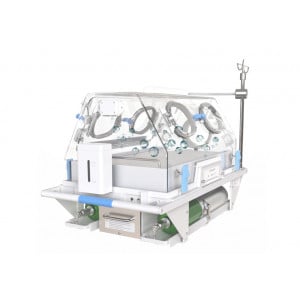

The TI-2100B is a transport incubator used for short-distance transport of premature newborns. Taking comfort and convenience as the main design concept while maintaining a constant temperature, it provides a more convenient transfer operation process and creates a comfortable transfer environment.

Precise control
Built-in humidity sensor achieves real-time monitoring and feedback of effective data, and accurate control of the humidity in the incubator.
The external humidification device generates water mist through ultrasonic high-frequency oscillation.
Servo oxygen supply, can be calibrated with single click (21% or 100%), and the oxygen concentration can be quickly increased to the set value.

LCD screen
8.8-inch TFT color LCD touch screen with fast switching between multiple languages, convenient for medical staff's observation and operation.

Updated algorithm
Equipped with an intelligent embedded control system. The updated PID core algorithm makes the temperature fluctuation more uniform.

Double wall hood
Double wall hood can minimize the heat loss generated by in-hospital and inter-hospital transport.

Safe transfer
Pressure-relief antidecubitus mattress made of TPU material is antibacterial, waterproof, soft and breathable.
Triple independent overheat protection, multi-channel sensor monitoring.
A single large-capacity lithium battery can last up to 6 hours, with three power supply modes: storage batteries, alternating current (AC) and direct current (DC).

Human-machine interaction
Disposable non-woven straps, light and causing no pressure on the newborns, can firmly fix them and provide safe transport.
The top illuminating lamp can provide even light covering the mattress, helping medical staff to observe and care even in a dark environment.
The incubator is made of PMMA material, 360° transparent and visible with a side door.

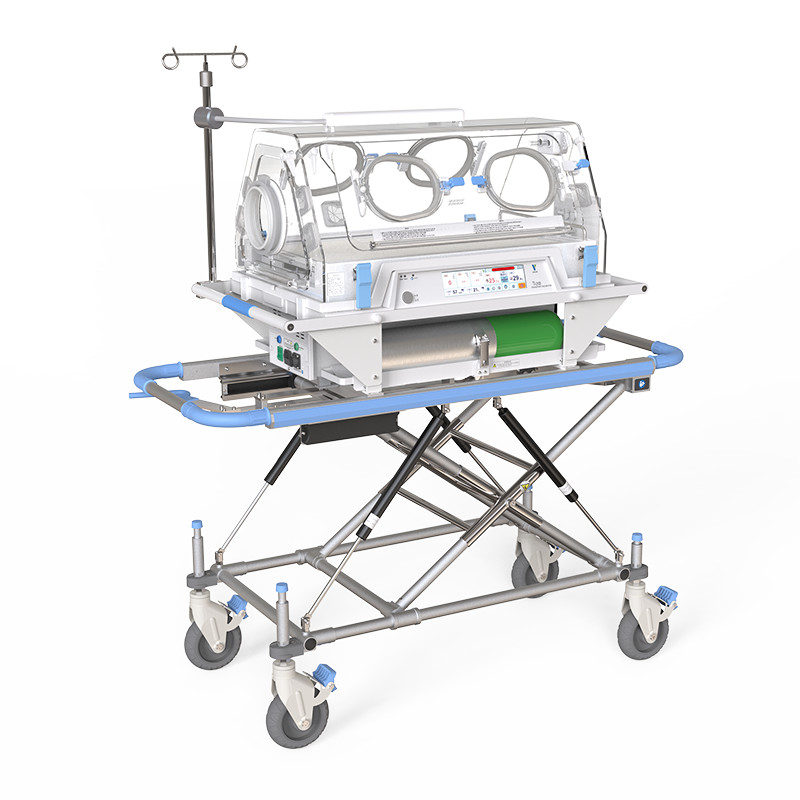

Trolley module
Standard normal trolley with three-gear adjustment of height.
Optional ambulance type trolley is available for safe and efficient loading and unloading operations.
Optional electric-lift type trolley with stepless adjustment of height, with buffer pad to reduce the vibration caused to the infants.

Monitoring module
Eliminate movement interference and improve the measurement performance under low perfusion and body movement states.
Significantly reduce the incidence of severe retinopathy of prematurity (ROP).
The sensitivity of screening for critical congenital heart disease (CCHD) can be improved to 93%.

Characteristics:

• 8.8-inch LCD colour touch screen

• Two temperature control modes: Air mode and Baby mode

• Multiple power supply: AC, DC and battery power

• Multi-functional trolley: height adjustable, shock absorbing, lockable

• Temperature setting function >37°C

• Double-walled hood with side door so the cot can be pulled out

• Independent over-temperature protection system, multiple alarm indications in case of failure

• Regular trolley as standard configuration, ambulance trolley (JH-I/I1/III) as optional configuration

• Monitoring system (optional).
