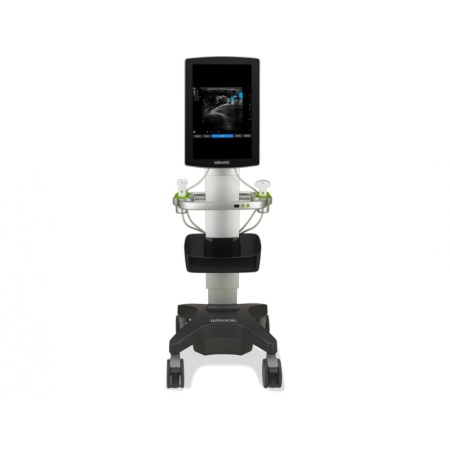

Navi Wisonic ultrasound

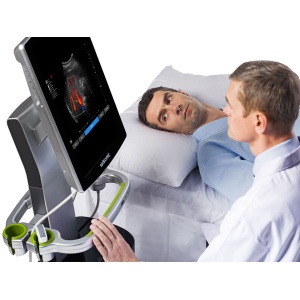

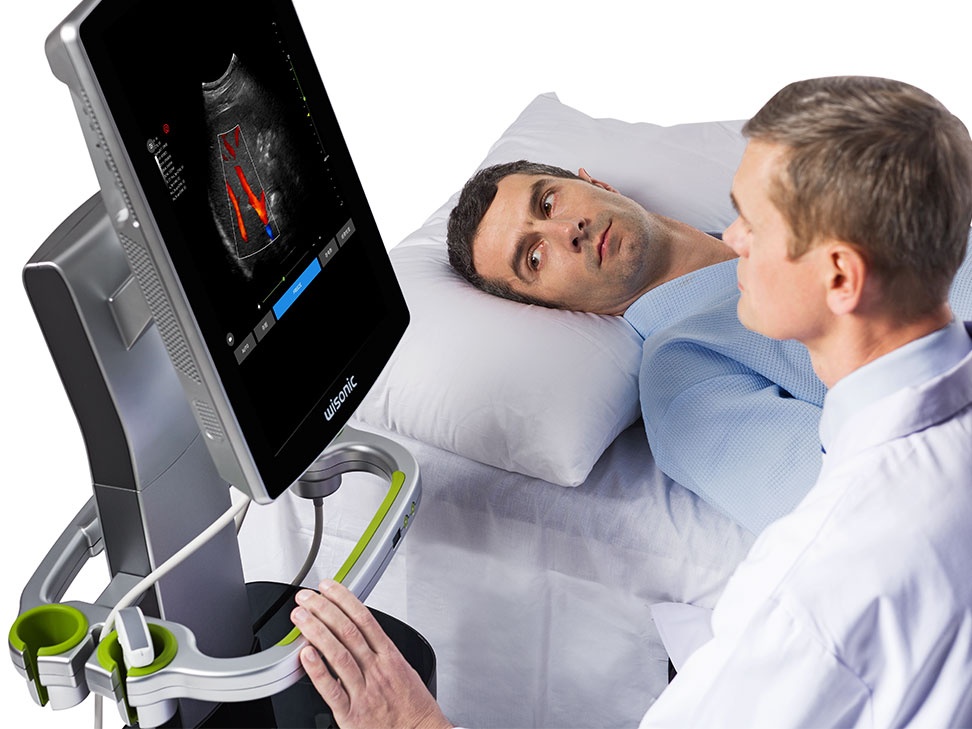

The Navi Wisonic ultrasound machine is an advanced medical solution dedicated to imaging and anesthesiology specialists, offering exceptional performance and a wide range of functions. With a 19-inch LED screen, touch and multi-gesture, this device ensures a friendly interface and efficient use in all types of investigations. State-of-the-art technologies such as Color Doppler, Harmonic and Time-Spatial Speckle Suppression make the Navi Wisonic an essential piece of equipment for accurate diagnosis.
The ultrasound machine includes a specially designed cart with smart solutions for storing and disinfecting the probes, as well as educational software and advanced functionalities such as needle visualization during anesthesia.
Ultrasound Navi Wisonic technical features:
Screen: 19-inch high-resolution LED, multi-gesture touch screen;
Ports: Two transducer ports;
Imaging modes: B/M/Color Doppler Velocity, Power Doppler (DirPower), PW imaging, Harmonic Imaging, HPRF, Spatial Compound Imaging;
Advanced functions: Ultra-wide Steer Angle, Time-Spatial Speckle Suppression Imaging, Auto Color and Auto Doppler with automatic vessel recognition;
Memory: 240 GB SSD with patient management system;
Connectivity: HDMI, two USB 3.0 ports, integrated Wi-Fi;

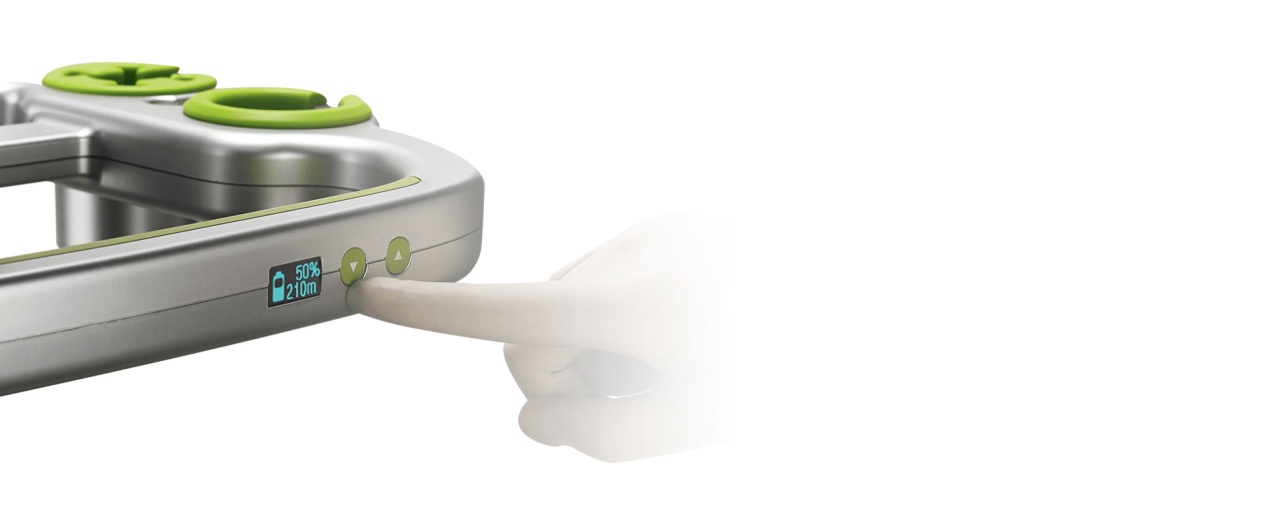

Specialized cart: Display for displaying the battery level, battery holder, front/rear storage basket, probe disinfection holder;
Software: DICOM (Basic, Worklist, MPPS, QR), complete package for anesthesia and general imaging;
Transducers included: Convex Array C5-1B and Linear Array L15-4B (38mm);
Printer: B/W Sony.
Convex - low frequency, deeper penetration, wide field of view (ideal for abdomen and internal organs);
Linear - high frequency, less penetration, high resolution (ideal for surface structures and fine details).
