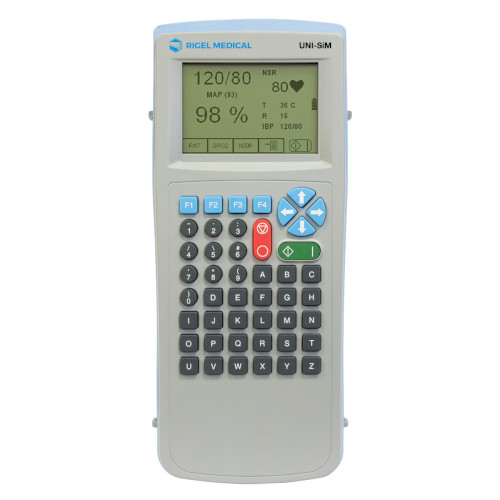

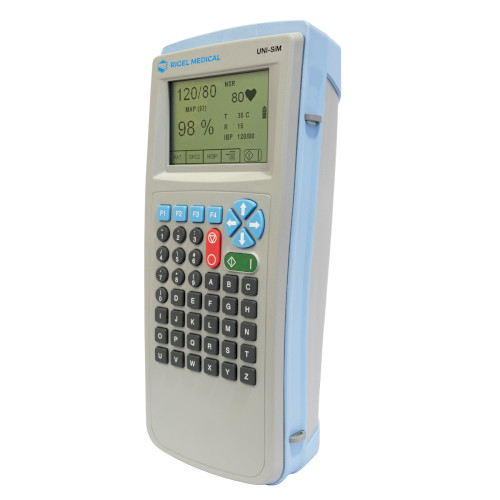

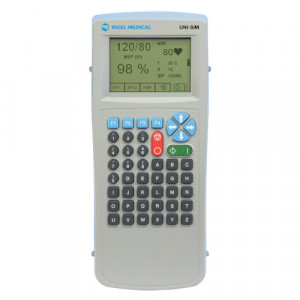

Rigel UNI-SiM vital functions simulator 6 in 1

Description

The Rigel UNI-SiM Vital Signs Simulator is a battery-powered 6-in-1 vital signs simulator capable of performing six synchronized tests of vital sign parameters.

Enabling fast, easy and accurate simulations of NiBP, SpO2, ECG, temperature, IBP and respiration functionality, the Rigel Uni-Sim Vital Signs Simulator is one of the most valuable tools out there today.

Using advanced technologies in both SPO2 and NIBP simulation, Uni-Sim reduces errors and minimizes testing time. Manufacturer-specific simulation curves can be created and loaded to further aid accuracy.

Bluetooth connectivity to a wide range of accessories and Med-eBase, comprehensive database software, ensure quick and easy download of test results, asset database management, test sequence creation and test certificate production.

Technical specifications:

NIBP: Oscillometric simulated waveform
Integrated pump 0-350mmHg
Leakage test configurable by the user between 0-350mmHg
Timer configurable up to 999 seconds
Digital manometer 0-410 mmHg
Accuracy +/-0.5%
Units of measure mmHg, inHg, kg/cm2, cmH2O,
mBar, PSI, inH2O and kPa

SpO2:
Range 50-100%
Accuracy +/-1bpm
Monitor response time timer

EKG:
12 channel simulator
Waveforms Normal Sinus Rhythm, ST Elevation,
ST Depression, Myocardial Infarction, Tall T
20-300BPM
Waveform sine performance test,
rectangle, triangle and pulse
Pacer waveform Synchronous Atrial, Asynchronous Atrial

Temperature:
Preset range at 25, 33, 37, 41°C

Breath:
Range 5, 10, 15, 30, 60, 120, 180 breaths per minute
Apnea simulation 0-60sec, interval 0-300sec

IBP: 2 channels
Static pressure 0-300mmHg
Dynamic pressure 0-300mmHg
