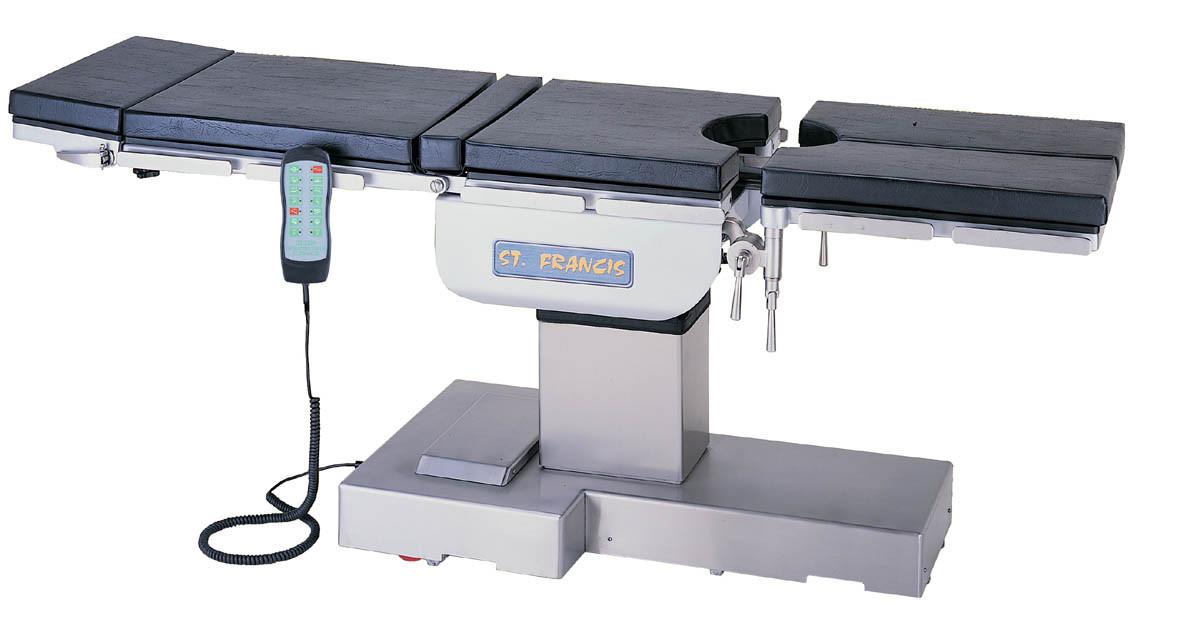

St.Francis OT-2100 universal operating table

Description

St.Francis OT-2100 Universal Operating Table offers general surgery such as urology, gynecology, ENT, ophthalmology, rectal, neurosurgical and orthopedic procedures. The table consists of five sections covered with a removable mattress with high-performance flexibility. The head and foot supports can be removed manually.

The table top slides longitudinally up to 35 cm to obtain a maximum radiolucent field for free access to the X-ray machine without moving the patient.
Two separate tops can be adjusted vertically or in a split tilt angle position.
The X-ray table top provides magnification of the whole body image.

Characteristics:

• Touch-screen coiled remote hand controller with precisely designed program provides versatile table top movement safety and precisely patient position;
• 4 castors can roll both longitudinally and laterally;
• 4 electro-hydraulic floor locking supporters with auto-balance system keep the table stable;
• The T-shaped base lends the table excellent stability and provides easy access for surgical team;
• Table length: 2125 mm;

• Table width: 600 mm;

• Mattress thick: 55 mm;
• Height variation: 1060 - 770 mm;

• Patient weight capacity: 180 kg.


Functions:

• Trendelenburg / Trend reverse;

• Lateral tilt (left / right);

• Rear section (up / down);

• Head section (up / down);

• Footrest (up / down / split tilt);

• Table top Longitudinal slide.
