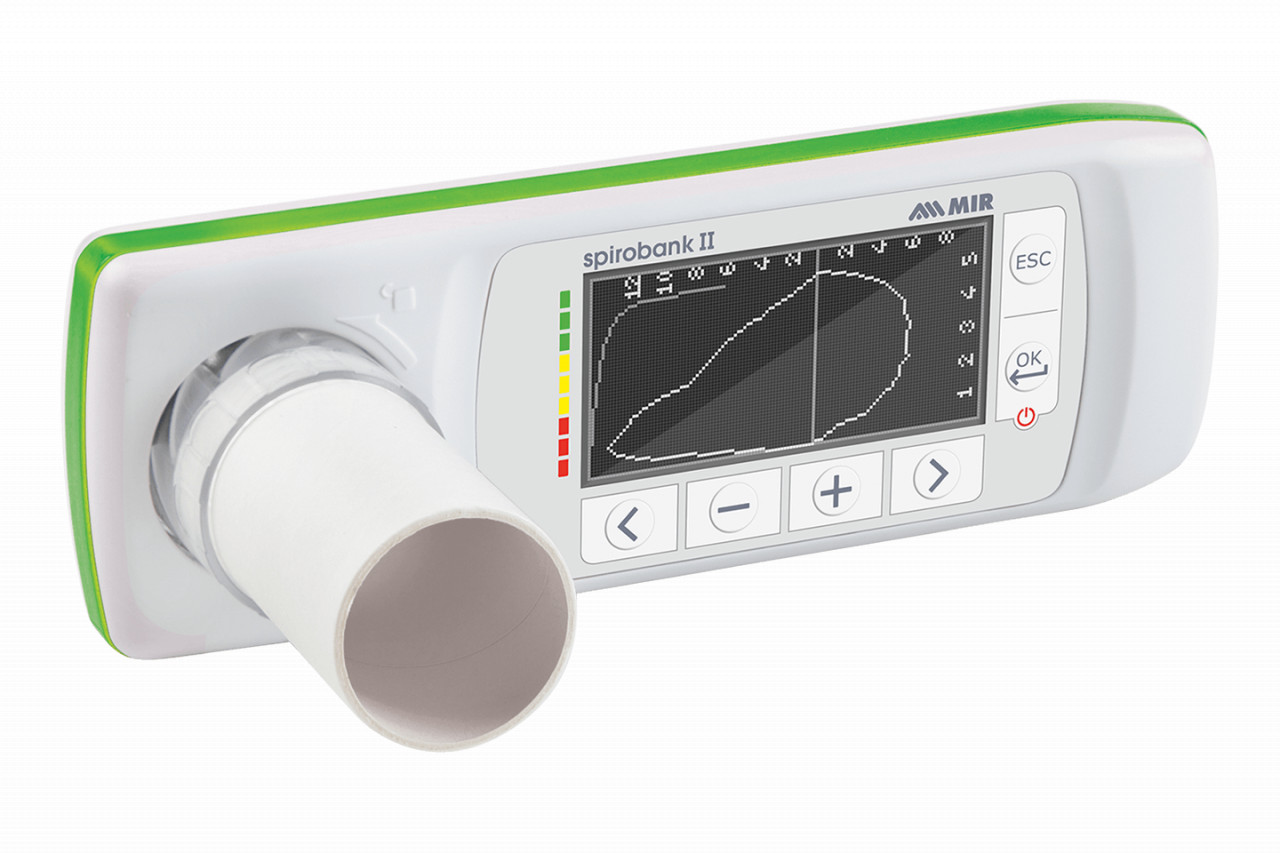

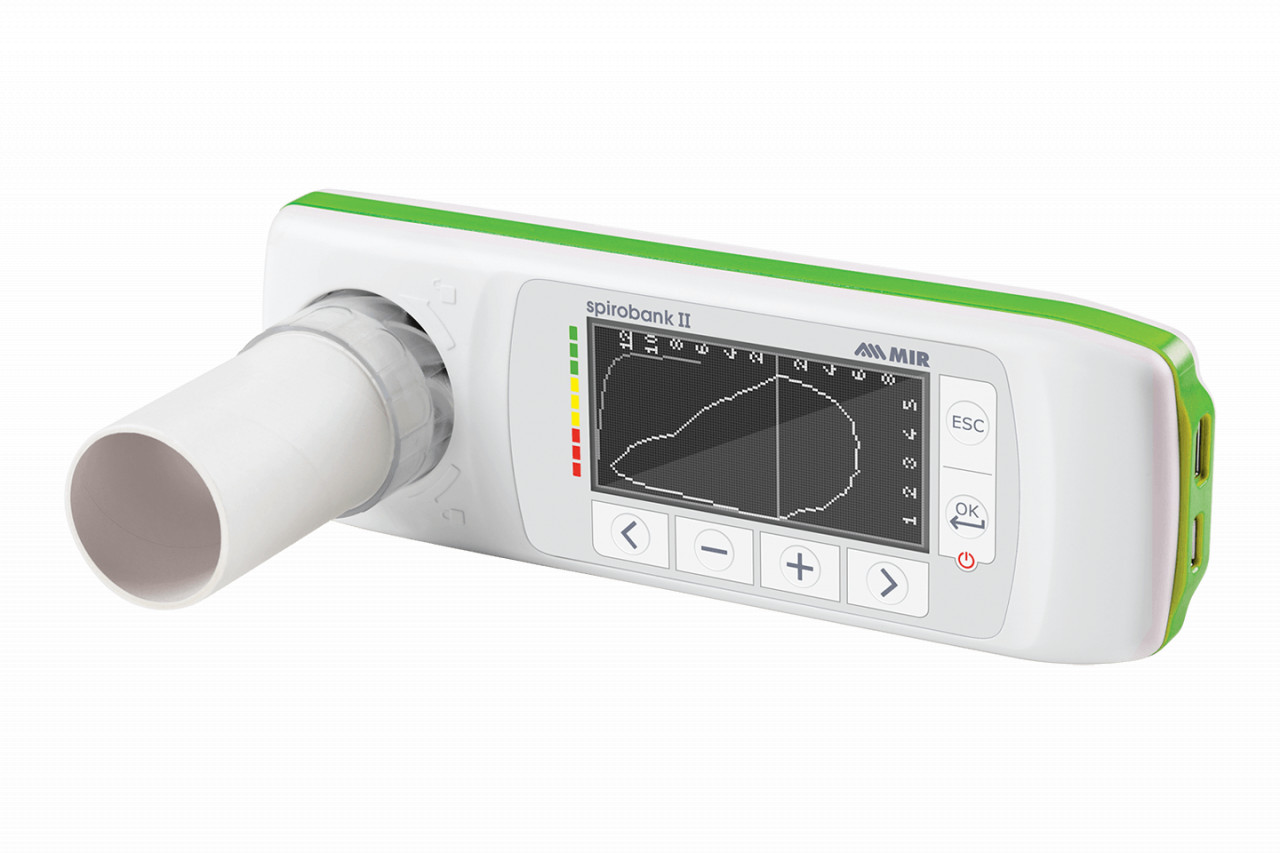

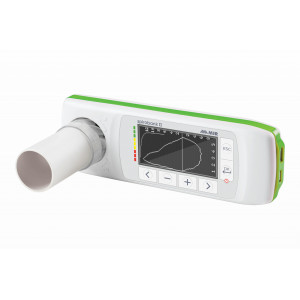

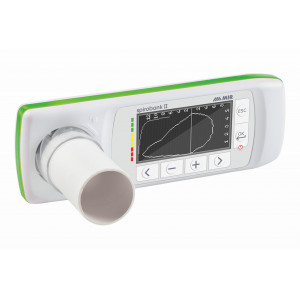

Spirometer MIR Spirobank II Basic
Description
The MIR Spirobank II Basic spirometer is a multifunctional medical device, a small, portable mini-laboratory that can work independently or connected to a PC or Laptop through the WinspiroPRO software.
The connection to the PC can be made via a USB cable, and all the spirometry test data, including the patient data stored inside the device, can be transferred from the device to the PC and then viewed on the PC or Laptop screen (flow curves /volume, spirometry parameters, optional oximetry parameters, spirometry ratio).
Technical specifications:
2.5 inch monochrome LCD screen, with a resolution of 160x80 pixels and backlight
6 membrane keys
Connection to PC via Soft WinspiroPro (free updates)
Bidirectional digital turbine (reusable or single use)
Internal semiconductor temperature sensor (0-45°C) for automatic BTPS conversion
The patient's data is entered directly, later recognition by name or ID code
The best 3 measurements are automatically saved.
Memory capacity 10000 tests.
Measured parameters: 12
Flow measurement: ±16 l/min
Flow accuracy: ±5 % or 200 ml/s
Volume accuracy: ±3% or 50 ml
Dynamic resistance: <1.5 cmH₂o/l/s
Measured parameters: FVC, FEV1, FEV1%, PEF, FEF25–75, FET, Extrap. Volumes, Lung Age, VC, IVC, IC, ERV
Calibration: not necessary, but can be done
Conditions of use: continuous operation
Connection: USB
Power supply: 3.7 V, 110 mA Lithium-Ion battery with USB charging (autonomy approximately 40 hours)
Dimensions: 160x55x25 mm
Weight: 145 g
