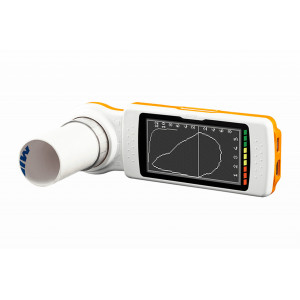

Spirometer MIR Spirodoc
Description
The MIR Spirodoc spirometer is a multifunctional medical device, a small professional portable mini-laboratory, with an Award-winning design, which can work independently or connected to a PC or Laptop through the WinspiroPRO software.
The connection to the PC can be made via a USB cable, and all the spirometry test data, including the patient data stored inside the device, can be transferred from the device to the PC and then viewed on the PC or Laptop screen (flow curves /volume, spirometry parameters, optional oximetry parameters, spirometry ratio).
The device is mainly intended for measuring respiratory function parameters and monitoring blood oxygen saturation and heart rate.
The flow and volume measurement sensor is a digital turbine (reusable or single-use) that ensures the precision and reproducibility of the measurements, without the need for periodic calibration.
It is equipped with a graphic LCD touch screen (touchscreen) that allows viewing the values and parameters of measured volume and flow.
Technical specifications:
3-inch monochrome LCD touch screen, with a resolution of 128 x 64 pixels and backlight

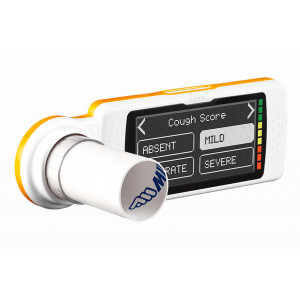

The patient receives preset questions and answers displayed on the screen related to the symptoms of the disease and can keep a quick diary (eDiary)
Connection to PC via Soft WinspiroPro (free updates)
Bidirectional digital turbine (reusable or single use)
Internal semiconductor temperature sensor (0-45°C) for automatic BTPS conversion
Accelerometer: Triaxial ± 2g, 400Hz
The patient's data is entered directly, later recognition by name or ID code
All tests are saved automatically.
Memory capacity 10,000 tests.
Over 90 measured parameters, including pulse oximetry
Large possibility of selection from standardized values
Flow measurement: ±16 l/min
Flow accuracy: ±5 % or 200 ml/s
Volume accuracy: ±3% or 50 ml
Dynamic resistance: <1.5 cmH₂o/l/s
Main parameters measured: FVC, FEV1, FEV1/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, FEF25%, FEF50%, FEF75%, FEF25%-75%, FET, Estimated lung age , Extr. Vol., FIVC, FIV1, FIV1/FIVC%, PIF, VC, IVC, IC, ERV, FEV1/VC%, VT, VE, Rf, ti, te, ti/t-tot, VT/ti, MVV measured, Calculated MVV
Intelligent pulse oximetry with values and plethysmographic curve displayed on the screen.
Walking test (6 minutes): after effort, the device indicates the oxygen requirement for therapy.
Sleep analysis
SpO2 measurement: 0-99% in 1% increments
SpO2 resolution: 1%
SpO2 accuracy: ± 2% between 70-99% SpO2
Average number of heartbeats for %SpO2 calculation: 8 beats
Pulse (heart rate) measurement: 30 – 254 BPM (beats per minute) (in 1 BPM increments)
Pulse Resolution: 1 BPM
Pulse Accuracy: +/- 2 BPM or 2% whichever is greater
Average time interval for heart rate calculation: 8 seconds
Signal quality indication: 0 - 8 segments on the screen
Configurable alarms: SpO2 and Min-Max pulse rate, finger/sensor inserted, low battery
Calibration: not necessary, but can be done
Conditions of use: continuous operation
Connection: USB On-The-Go or Bluetooth 2.1
Power supply: Lithium-Ion battery of 3.7 V, 110 mA with charging via USB (autonomy approximately 40 hours),
Dimensions: 101 x 48 x 16 m
Weight: 116 g
Accessories included in the delivery set:
PC connection software
USB cable
Carrying bag
Disposable turbine or reusable turbine
Adult reusable SpO2 sensor (optional)
