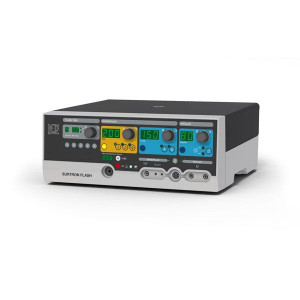

Electrocauter FLASH 200 SURTRON LED

Description

SURTRON FLASH 200 is a High Frequency RadioSurgical equipment which is suitable to precision monopolar and bipolar surgery and micro-surgery without tissue alterations.

The Surtron Flash 200 allows you to perform surgical treatments with sub-second programmable operating times or operate with traditional methods.
Through its performances, SURTRON FLASH 200, allows pure CUT, cut-coagulation BLEND, incision with reduced prodution of eschar ENHANCED, superficial coagulation FORCED COAG, deep coagulation in absence of necrosis SOFT COAG, BIPOLAR coagulation and ABLATION.
The digital reading of the delivered power and the overseeing through microcontroller of the operational functions, assure the absolute reliability of the conditions of job.
The connection of neutral electrode is constantly monitored. Safety control of patient/plate contact using split neutral electrode. The possibility to control by the handle the output functions as well as the delivery of output power, allows to implement the surgical operation without turning away the surgeon attention from the surgical field.

UNDERWATER CUTTING AND COAGULATION

Characteristics:

• Maximum CUT power 200 W – 250 Ω;

• Maximum power BLEND 120 W – 200 Ω;

• Maximum power IMPROVED 120 W – 250 Ω;

• Maximum power COAG FORCED 150 W – 150 Ω;

• Maximum power SOFT COAG 90 W – 100 Ω;

• Maximum power COAG BIPOLAR 80 W – 50 Ω;

• Operating frequency 600 kHz;

• RF power emission time 10 ms – 30 sec;

• RF power pulse range 1 – 9;

• Neutral electrode F;

• Selectable power supply 115-230 Vac;

• Mains frequency 50-60 Hz;

• Maximum absorbed power 350 VA;

• Dimensions LxHxD 370x144x319 mm;

• Weight: 6 kg.

Controls:

• Board/Patient OC Circuit Control;

• Output power control;

• Own diagnosis.
