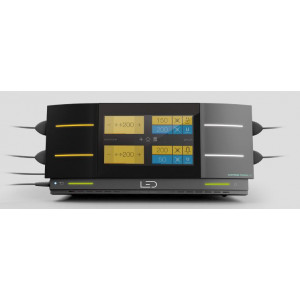

Electrocauter Touch HP 300 SURTRON ​LED

Description

SURTRON TOUCH HP is an intuitive and easy-to-use electrocautery. The horizontal correspondence between the monitor, the RGB light indications and the connectors allows for a clear and easy-to-read overview.

SURTRON TOUCH HP enables highly professional surgical interventions with ergonomic and safety solutions. The neutral electrode connection is continuously monitored, if a split neutral plate is used, the device will monitor the contact between the patient and the electrode.

Performance, usability, design and reliability: these are the strengths of the new SURTRON TOUCH HP.

LeOS, the Operating System for Led Electrosurgery, was developed to provide a simple, functional and intuitive working experience.

UNDERWATER CUTTING AND COAGULATION

Characteristics:

• The connection of the neutral electrode is constantly monitored;

• Patient/neutral electrode contact safety control is performed using a split neutral electrode;

• The possibility of control with the help of the handle of the output functions as well as of the power used, allowing a focused surgical intervention without deviating the surgeon's attention from the visual field of the operation;

• Monopolar and bipolar operation;

• Simultaneous monopolar/bipolar activation;

• Integrated ARGON unit;

• Power control according to impedance;

• Pedal and/or handpiece activation;

• TUR cutting function under saline solution;

• BLEND function for cutting in wet conditions;

• The function of sealing vessels up to 7 mm;

• Possibility of use in minimally invasive surgery;

• Autostart / Autostop in bipolar mode available;

• Possibility to adjust the sound intensity.

Functions specification:

• Maximum PURE monopolar cutting power: 300 W 300 Ω;

• Maximum IMPROVED monopolar cutting power: 200 W 300 Ω;

• Maximum monopolar cutting power: BLEND200W 200Ω;

• Maximum monopolar cutting power: DUO 150 W 300 Ω;

• Maximum cutting power: TUR 250 W 300 Ω;

• Maximum forced monopolar coagulation power: 120 W 200 Ω;

• Maximum SOFT monopolar coagulation power: 120 W 200 Ω;

• Maximum LIGHTNING monopolar coagulation power: 80 W 300 Ω;

• Maximum monopolar coagulation power: DUO80 W 300 Ω;

• Maximum monopolar coagulation: 100 W 500 Ω 100 W 500 Ω;

• Maximum SPRAY ARGON monopolar coagulation power: 150 W 50 Ω 300 W 300 Ω 50 W 50Ω;
• Maximum PURE bipolar cutting power: Max 250W 25Ω 250W 25 Ω 150 W 50 Ω;

• Bipolar cutting-coag power TUR: 50 W 50 Ω 360 kHz F 0.2 – 10 LPM;

• Maximum Bipolar Cut-Coag: 3.0 bar (43.5psi) 100 – 240 Vac 50;

• Maximum MICRO bipolar coagulation power: TUR 60 Hz 1000 VA 470x220x460 mm;

• Maximum coagulation power: bipolar SIGLAREA 13.5 kg.
