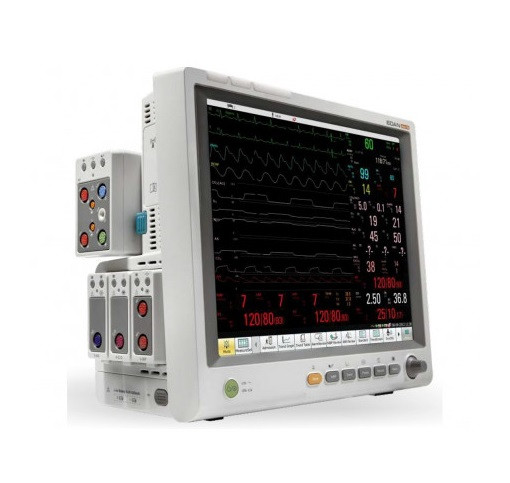

Elite V6 patient monitor EDAN

Description

EDAN elite V6 patient monitor is designed to provide a comprehensive healthcare solution, especially for critical care units. Using it together with the iM20, you can build a seamless connection for patients coming from ambulances inside the hospital.

With its plug-and-play modules and an extensive modular rack, the elite V6 is capable of monitoring a wide range of parameters simultaneously, adapting from critical care to anesthesia monitoring, with additional monitoring capabilities including ICG, MR and BIS .

The inclusion of additional functions helps in medical treatments, such as diagnostic suggestion on the 12-channel EKG meter, hemodynamic calculation, drug dose calculation, PPI overlay. Such features provide quick references to help decide adjustments to care and treatment plans.

The Elite V6 can connect to hospital networks seamlessly and interact with the hospital information system with HL7 output and internal Wi-Fi. Various connection options are used for the Elite V6 to transfer meters to other hospital units. It also has a support call system and allows connection to the central monitoring station.

Characteristics:

• LCD screen: 15 inch, touch screen, TFT-LCD resolution with customisable shortcut menu;
• Dimension: 384mm x 320mm x 213mm;
• Max weight: < 7,5 kg;
• Operating time: ≥ 9 h;
• Charge time: ≤ 5,4 h ( when the monitor is off);
• Recording types:
   - Continuous real-time recording;
   - 8-second real-time recording;
   - 20-second real-time recording;
   - Automatic interval recording;
   - Physiological alarm recording;
   - Trend graph review recording;
   - Trend table review recording;
   - NIBP review recording;
   - Arrhythmia review recording;
   - Alarm review recording;
   - Titration table recording;
   - Hemodynamic calculation recording;
   - C.O. measurement recording;
   - 12-lead diagnosis review recording;
   - Frozen waveform recording;
• TFT-LCD resolution with customisable shortcut menu;

• Touch & Configure function;

• Pacemaker detection;

• Protection against electrocautery interference;

• Defibrillation protection;

• Pitch tones;

• 3-segment light alarms;

• Optimized EKG algorithm for arrhythmia detection, pacemaker detection and pulse measurement;

• SpO2 algorithm with very high resistance to motion and infusible solutions;

• NIBP algorithm specifically for hypertensive, cardiac and neonatal patients;

• High storage capacity;

• LAN/Wi-Fi connection (optional) to central monitoring station;

• HL7 support with hospital information system;

• VGA output.
