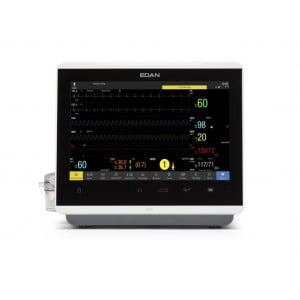

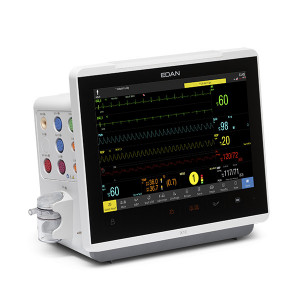

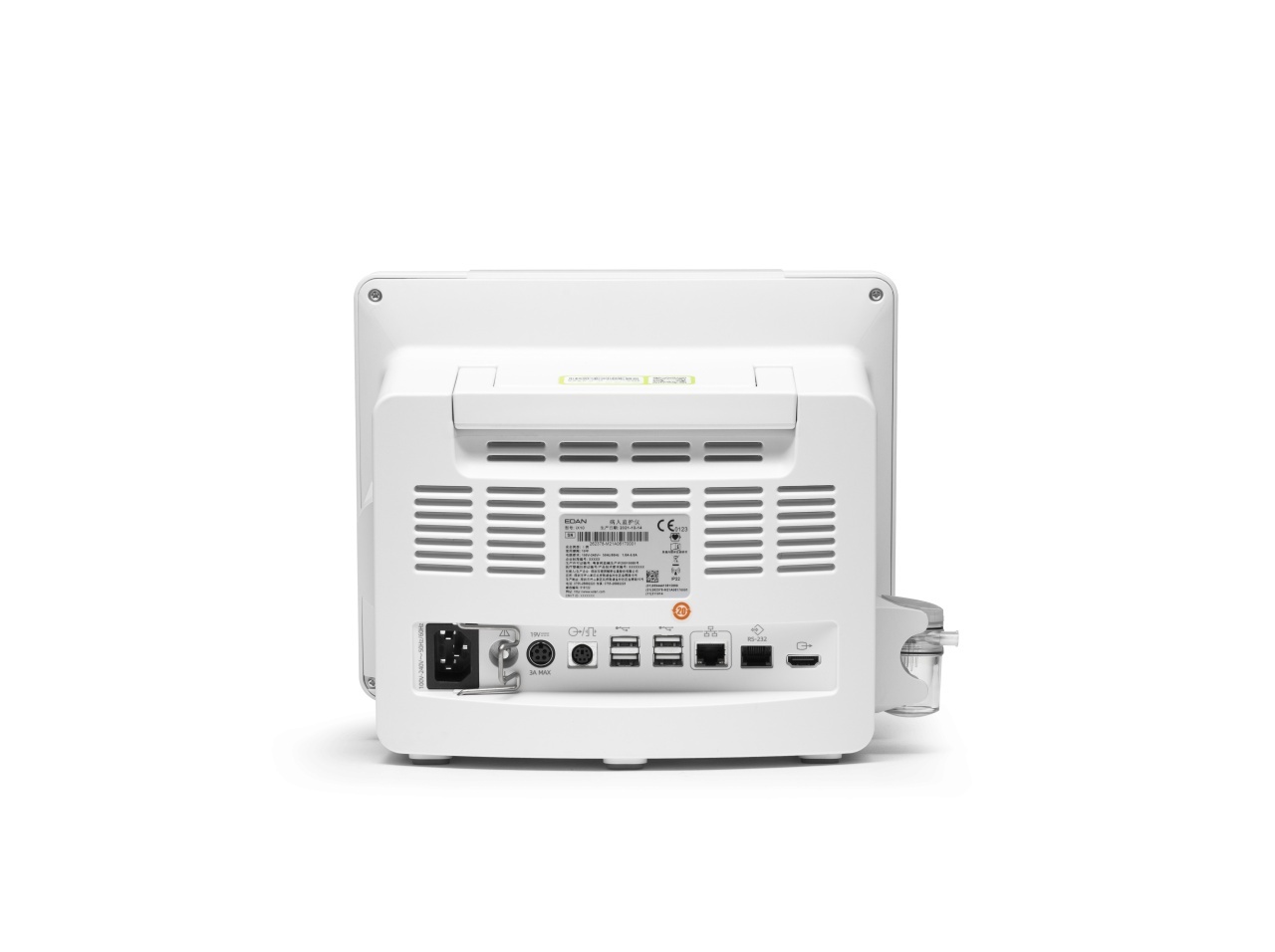

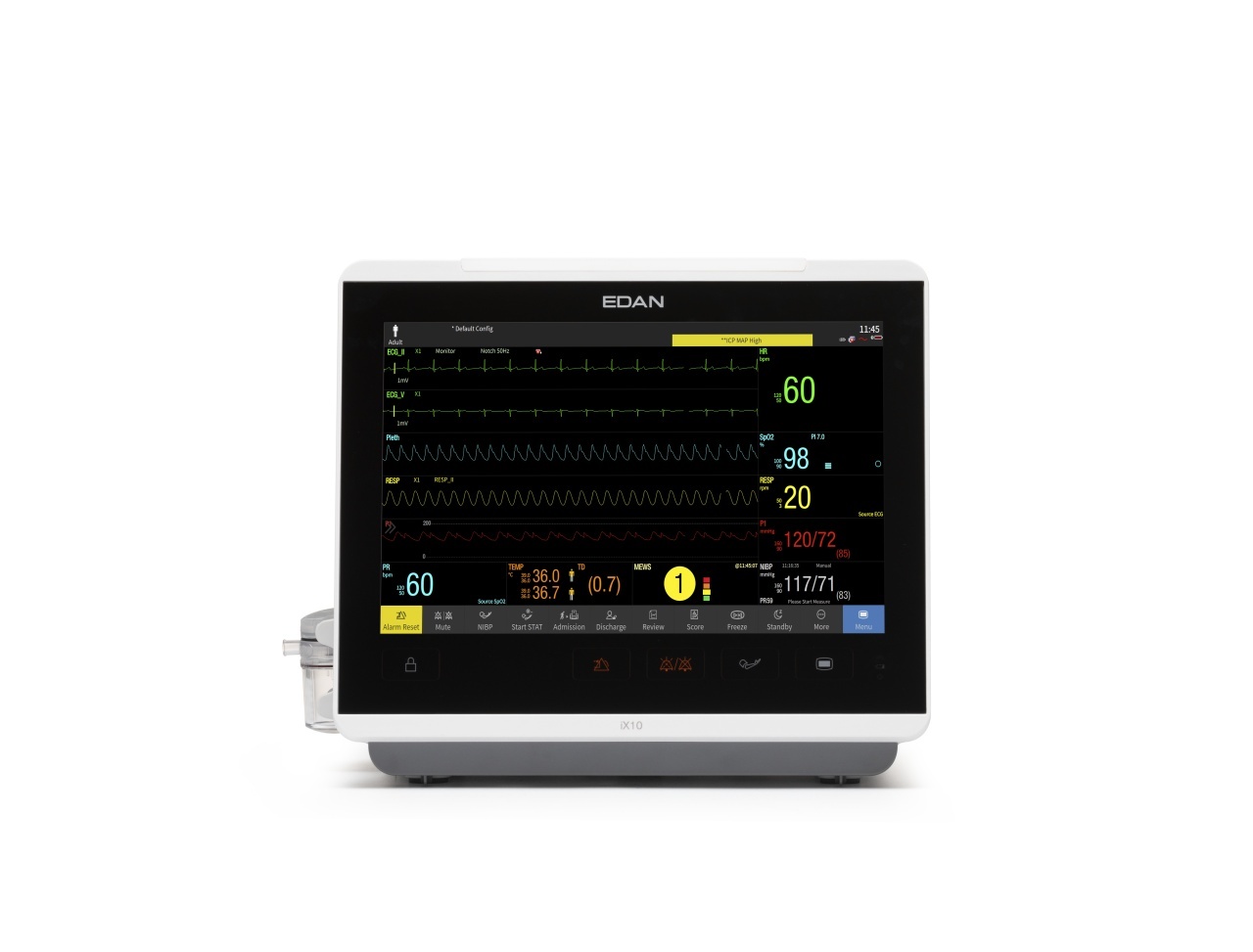

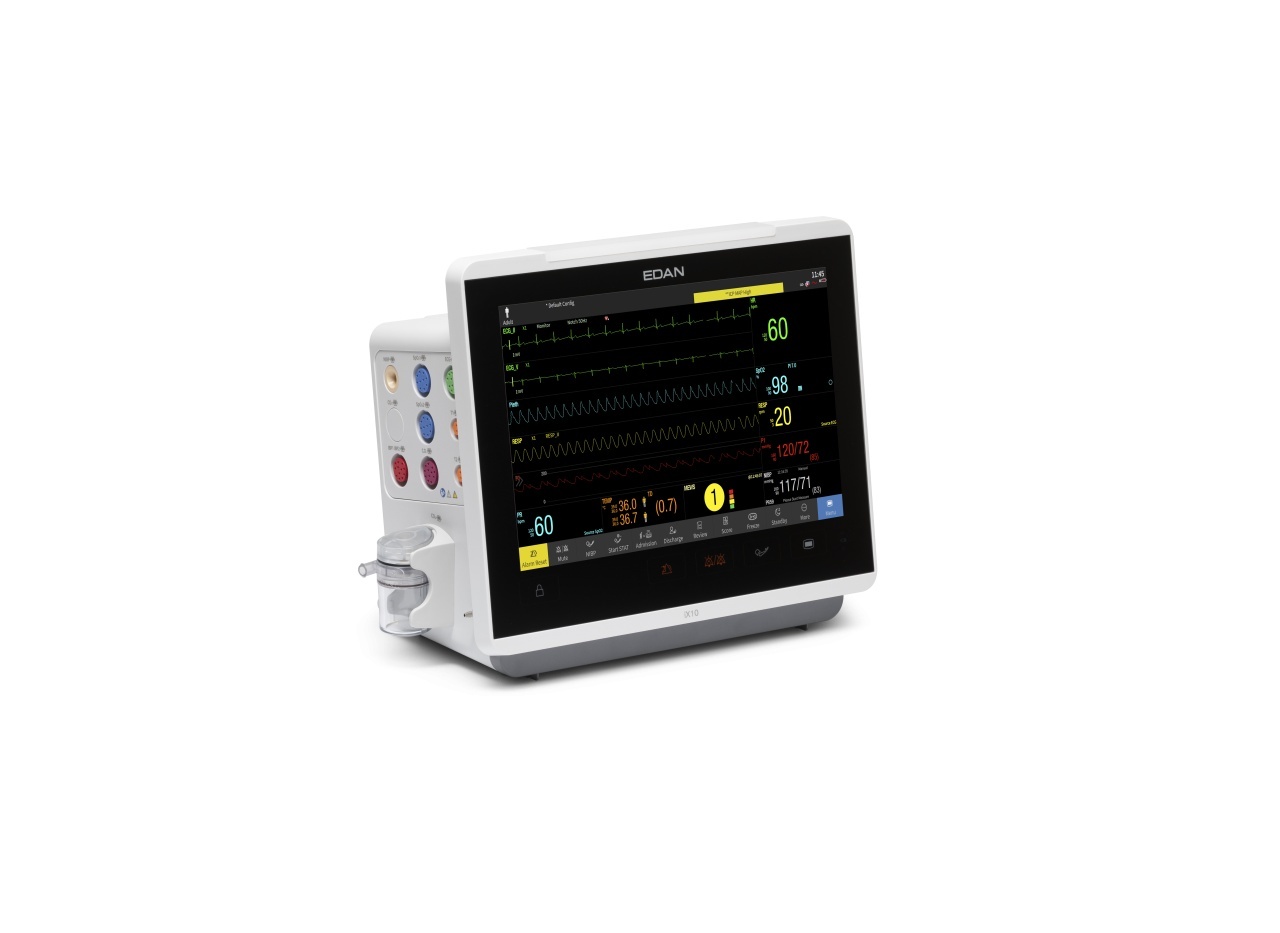

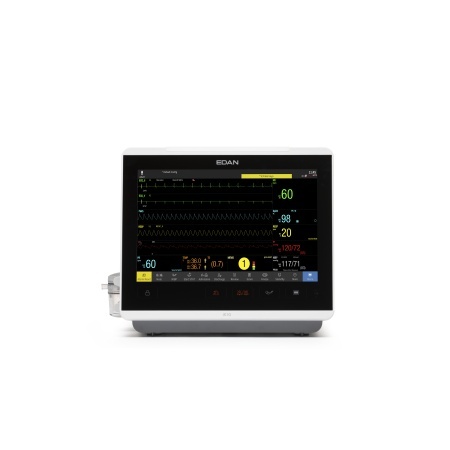

iX10 patient monitor EDAN

Description

The EDAN iX10 patient monitor redefines effortless monitoring, from outstanding visual and operational expertise to accurate and informative monitoring solutions. The iX Series’ flexibility allows it to assist multiple hospital apartments, including Emergency Rooms, Recovery Rooms, Sub-acute Units, and General Wards.

Wired or wirelessly connect the iX Series Patient Monitors to the Central Monitoring Station (CMS) and Electronic Medical Records (EMR) via HL7 protocol. Patient Data can be accessed from multiple terminals including Mobile Station, Web Observer, and CMS.

Characteristics:

• Easy daily disinfection;

• Quickly adjust user settings;
• Direct access to user operations;

• 1280x800 pixel ;

• Auto Brightness Adjustment;

• No-fan Design;
• Enhanced battery capability;
• Waterproof & Dustproof;

• Close monitoring of the patient's vital functions;
• 10.1-inch high-resolution colour touch screen.

Standard Parameters:

• 3/5/6-lead ECG,
• EDAN SpO2,
• NIBP,
• 2-TEMP,
• RESP

Optional Parameters:

• 12-lead ECG;
• Nellcor SpO2;
• Edan Dual-SpO2;
• 2-IBP (iX10/iX12);
• C.O.;
• Edan G2 CO2;
• Masimo CO2;
• Respironics CO2.
