Elite V8 patient monitor EDAN

Description

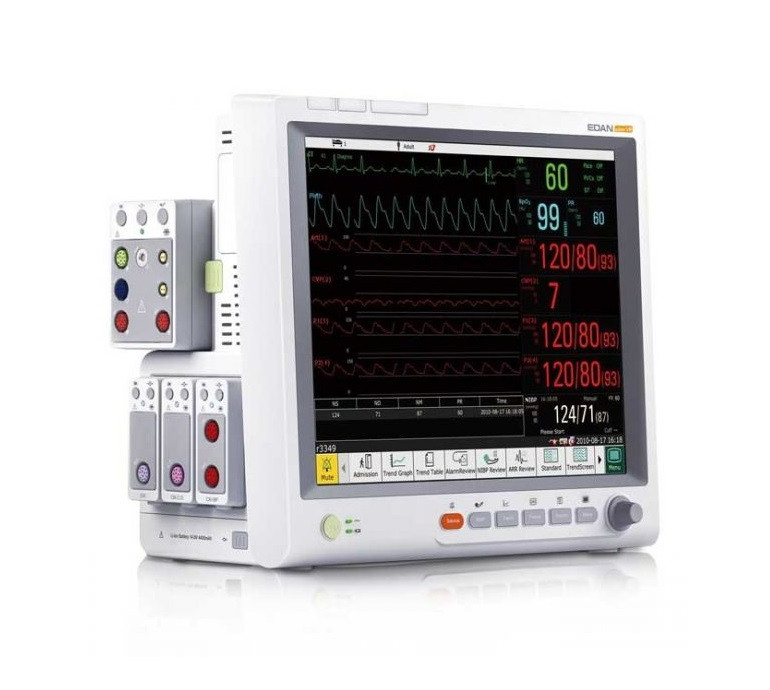

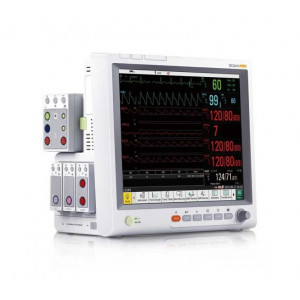

Elite V8 Modular Patient Monitor Designed as a modular monitor, it offers complete healthcare solutions, especially for critical wards. With the iM20, you can perform continuous monitoring from the patient's home to the operating room with the same device.

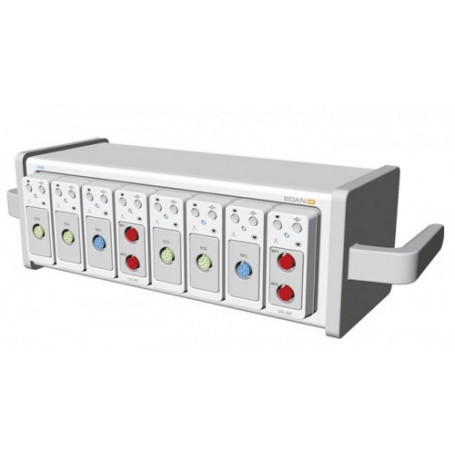

With its plug-and-play modules and an extensive modular rack, the elite V8 is capable of monitoring a wide range of parameters simultaneously, adapting from critical care to anesthesia monitoring, with additional monitoring capabilities including ICG, MR and BIS .

High-resolution color TFT-LCD display along with customizable shortcut menu, provides easy one-touch access to frequently used functions.

Characteristics:

• LCD screen: 17 inch, touch screen, TFT-LCD resolution with customisable shortcut menu;
• Dimension: 425mm x 384mm x 245mm;
• Max weight: < 14 kg;
• Operating time: ≥ 3 h;
• Charge time: ≤ 5,4 h ( when the monitor is off);
• Recording types:
   - Continuous real-time recording;
   - 8-second real-time recording;
   - 20-second real-time recording;
   - Automatic interval recording;
   - Physiological alarm recording;
   - Trend graph review recording;
   - Trend table review recording;
   - NIBP review recording;
   - Arrhythmia review recording;
   - Alarm review recording;
   - Titration table recording;
   - Hemodynamic calculation recording;
   - C.O. measurement recording;
   - 12-lead diagnosis review recording;
   - Frozen waveform recording;
• TFT-LCD resolution with customisable shortcut menu;

• Touch & Configure function;

• Pacemaker detection;

• Protection against electrocautery interference;

• Defibrillation protection;

• Pitch tones;

• 3-segment light alarms;

• Optimized EKG algorithm for arrhythmia detection, pacemaker detection and pulse measurement;

• SpO2 algorithm with very high resistance to motion and infusible solutions;

• NIBP algorithm specifically for hypertensive, cardiac and neonatal patients;

• High storage capacity;

• LAN/Wi-Fi connection (optional) to central monitoring station;

• HL7 support with hospital information system;

• VGA output.
