iM20 patient monitor EDAN

Description

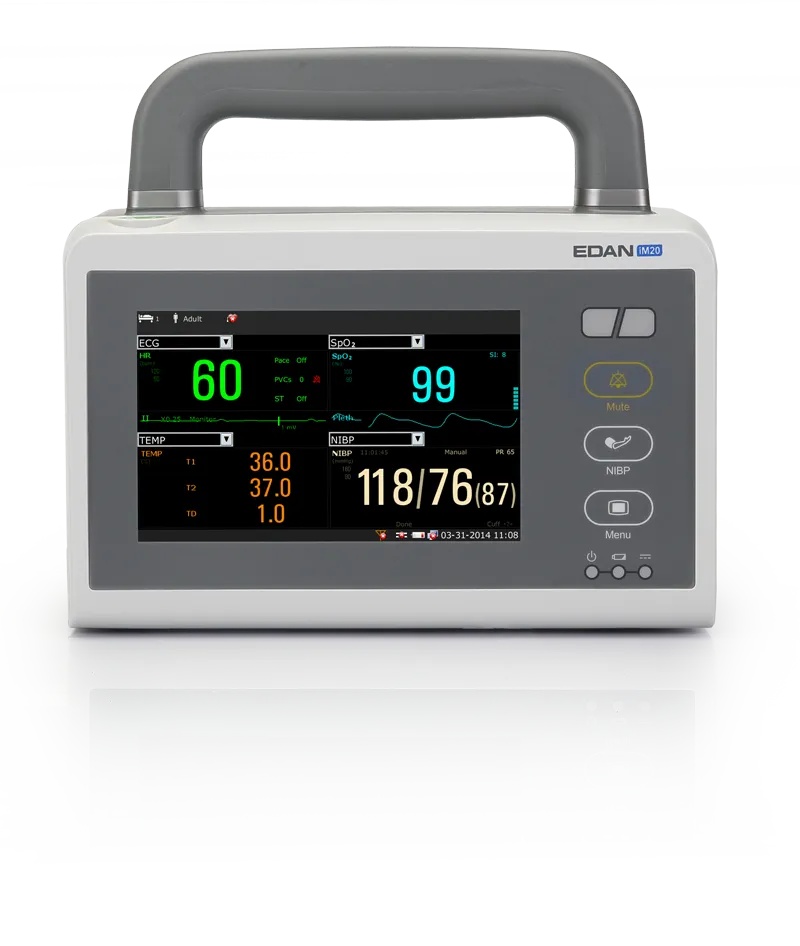

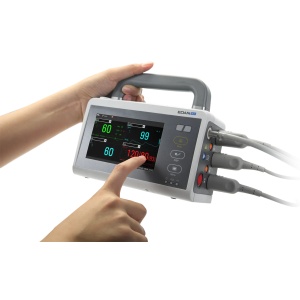

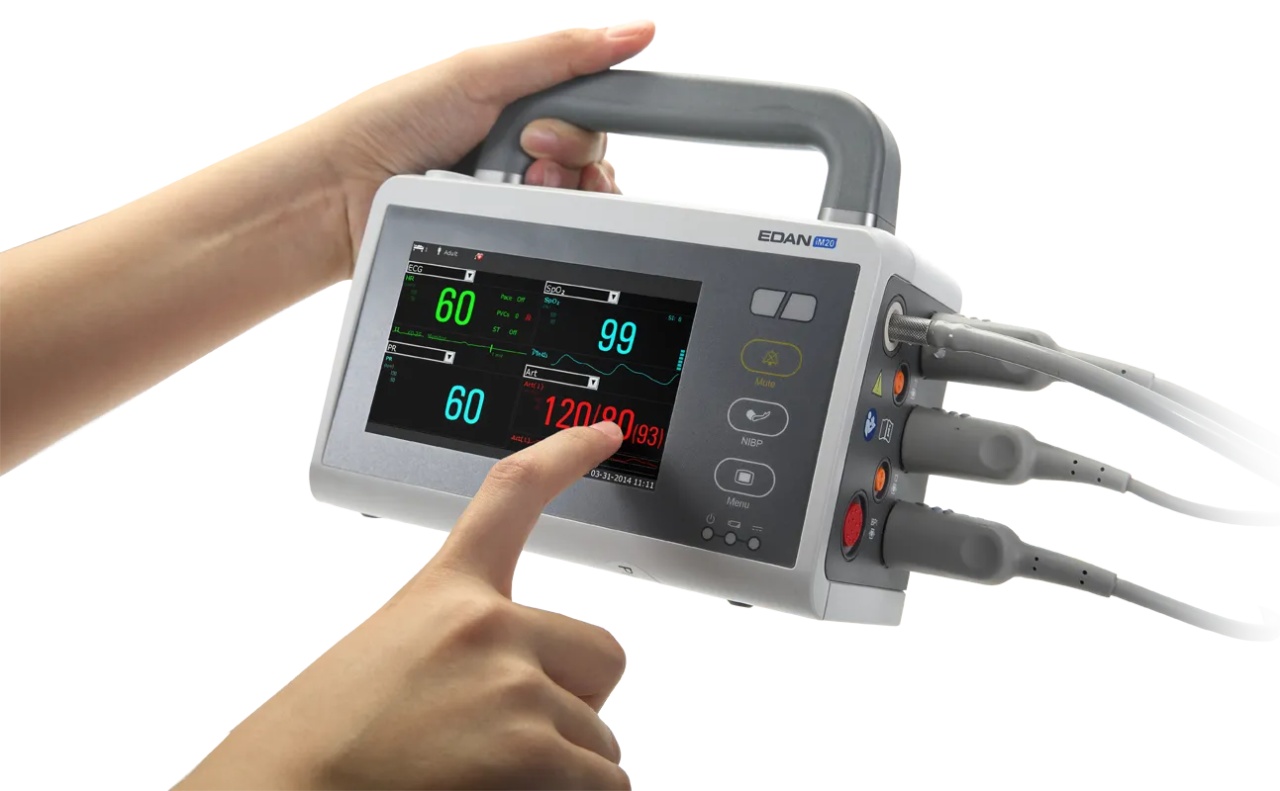

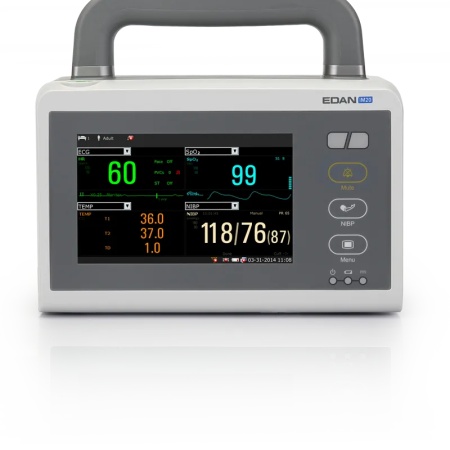

The EDAN iM20 patient monitor provides a seamless monitoring solution both inside and outside the hospital, connecting from emergency to critical care. It weighs less than 1.5 kg with the battery installed, making it one of the lightest monitors you can find on the market.

The monitor is designed strictly according to the IP44 standard, waterproof and dustproof, and has increased shock resistance. It reduces the space required for a patient monitor by offering the possibility to use it anywhere and anytime.

iM20 comes configured with EKG, RESP, NIBP, SpO2 and temperature, has 12 channels and IBP (Invasive Blood Pressure) with 2 channels.

The unit features internal wifi and internal memory for advanced EMR connectivity via HL7 and/or Edan central monitoring station (CMS) connection.

With IP44 water and dust protection, iM20 is outstanding for field medical practice, from regular emergency cares in rainy weather, to disaster controls with dusty environments. Designed with 1 meter shock resistance, unintentional falls and impacts shall not interrupt the monitoring, nor does the bumpy ride on rough road or hilly areas.

Characteristics:

• 5 inch touch screen display;
• Portable design: <1,5 kg;
• IP44 water and dust protection
• Shock resistance
• Rechargeable Li-ion battery with 5.5 h of operating time
• No-fan design.

Configurations:

• iSEAP™ ECG algorithm optimized for arrhythmia detection, pacemaker detection, and HR measurement;

• SEMIP® 12-lead diagnosis algorithm with 208 kinds of ECG findings in optional 12-lead ECG configuration;

• iMAT™ SpO2 algorithm with outstanding motion resistance and low perfusion resistance performance;

• Perfusion Index (PI) measurement as a blood perfusion indicator;

• Optional Nellcor SpO2 with SatSeconds™ technology;

• iCUFS™ NIBP algorithm optimized for cardiac patients, hypertensive patients, and neonatal patients;

• Optional SunTech NIBP with SunTech Advantage TMT technology;

• Optional 2-channel invasive blood pressure with waveform overlapping function;

• Optional cardiac output with thermodilution method;

• Optional cardiac output monitoring function;

• Optional EFM module with Respironics LoFlo™ technology inside;

• 2-channel temperature monitoring.
